Application:
This product can be used in the construction of anchor spraying support in mine shafts, railway tunnels, highway slopes, subways, culverts, water conservancy and other projects.

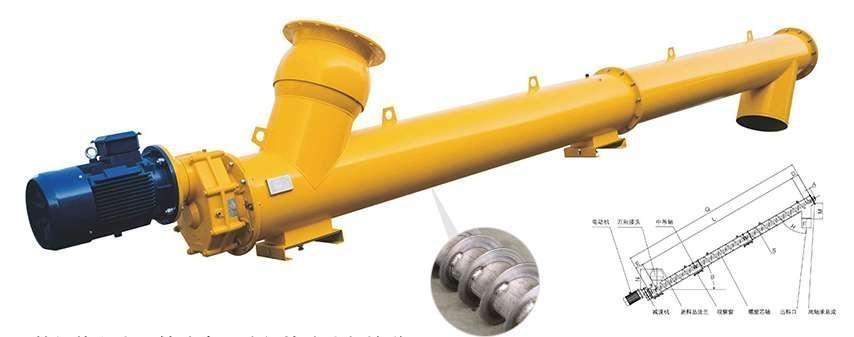

SDL type feeder is special equipment for batching and conveying of aggregate (concrete, cement, sand) machine. It has the characteristics of compact structure, simple and convenient operation, and stable working performance. It can achieve automatic proportioning and continuous loading of cement and gravel. It can effectively reduce the labor intensity of operators and improve production efficiency. It is an ideal product for coal mine support operations.
| Model | Screw Diameter (Screw feeder) mm | Belt width (Belt feeder) mm | Rated input power kw | Length m |
| SDL160 | 150~180(Length can be customized) | 3(4/5.5) | 2/3 | |
| SDL220 | 200~230(Length can be customized) | 5.5(4/7.5) | 2/3/4 | |
| SDL300 | 300~330(Length can be customized) | 300(Length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
| SDL400 | 400~430(Length can be customized) | 400(Length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
| SDL600 | 600~630(Length can be customized) | 600(Length can be customized) | 5.5(7.5/11) | 3/4/5/6 |
| SDL800 | 800~830(Length can be customized) | 7.5(11) | 4/5/6/9 | |
| SDL1000 | 1000~1030 | 11(15) | 5/6/9 |
